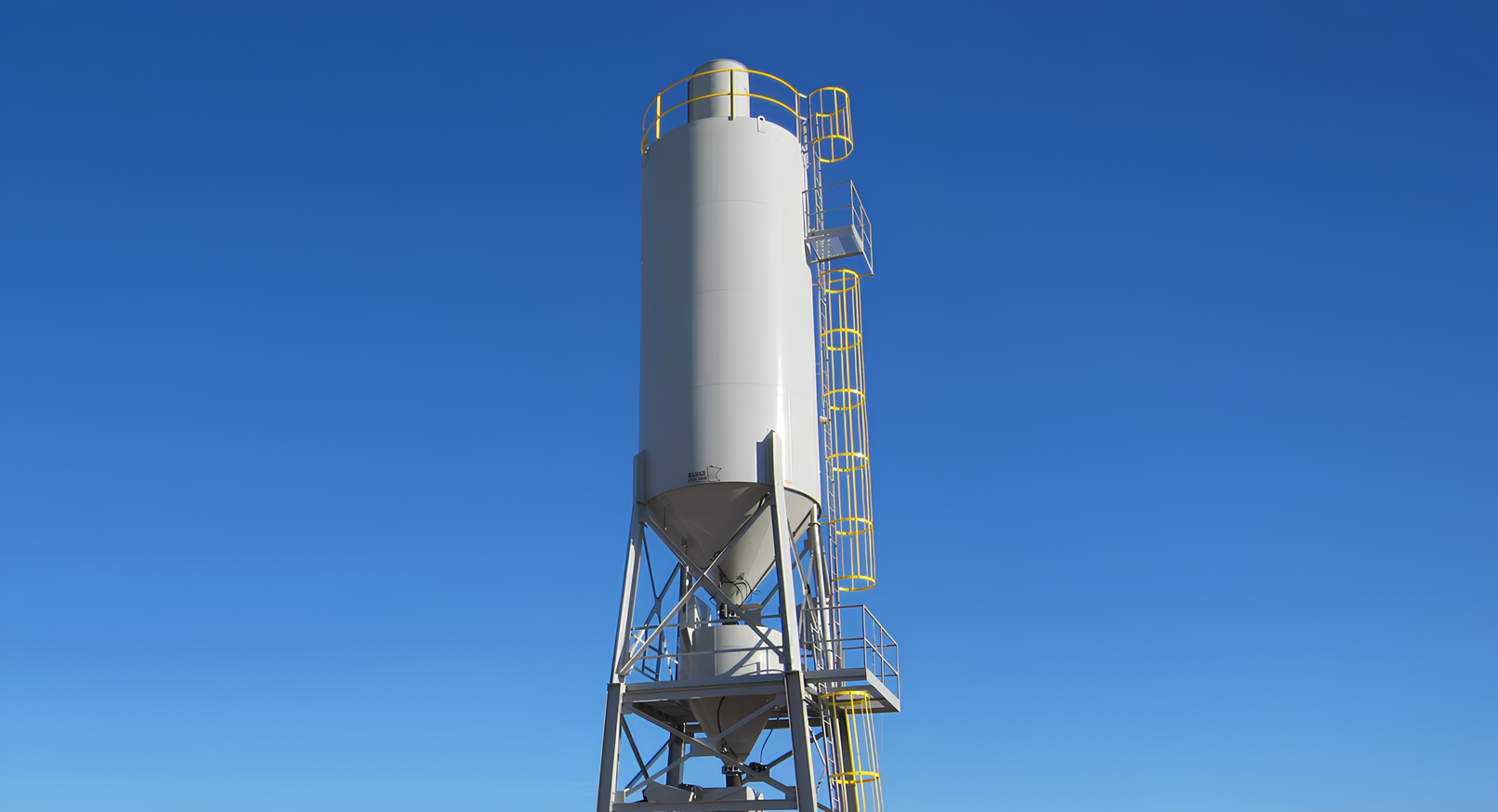

Single Cell Silos

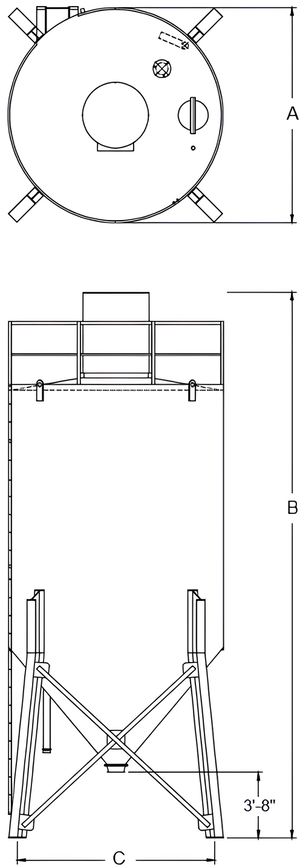

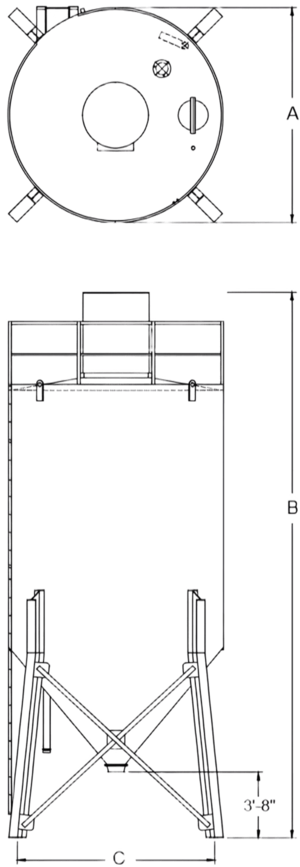

| Bbl | Ft.³ | Tons | A | B | C |
|---|---|---|---|---|---|
| 185 | 740 | 34 | 8'-6" | 20'-6" | 7'-8" |
| 270 | 1080 | 50 | 8'-6" | 26'-6" | 7'-8" |
| 350 | 1400 | 65 | 8'-6" | 32'-6" | 7'-8" |
| 550 | 2200 | 100 | 12'-0" | 32'-6" | 11'-0" |
| 700 | 2800 | 130 | 12'-0" | 34'-6" | 11'-0" |
| 900 | 3600 | 168 | 12'-0" | 40'-6" | 11'-0" |
| 1050 | 4200 | 196 | 12'-0" | 46'-6" | 11'-0" |
| 1200 | 4800 | 225 | 12'-0" | 52'-6" | 11'-0" |
Tons = Theoretical cement capacity in tons
Standard Equipment: Outside Ladder with OSHA Compliant Fall Arrest Cable System and Full Railing • 330 Ft.² Pulse Jet Dust Collector with Cartridge Filters • Solimar Vibratory Disc Aeration • Pressure Relief Valve • High and Low Level Indicators with Alarms • 5″ Fill Pipe with Aluminum Adapter • 1/2″ Internal Air Line • 1/2″ Electrical Conduit • (2) 20″ Non-Pressurized Inspection Manholes • Emergency Jam Gate • Legs with 3′-8″ Clearance Under Discharge • Sand Blast, Prime, and Paint – White, Gray, Tan, or Yellow
Standard Options: Drive-Through or Non- Drive-Through Style Structural Stand • Work Platform with Grated Floor, Full Railing, Toe and Knee Boards • 10, 12, or 14 Yd.³ Capacity Cement Batcher • Function Controls • Bag-Type Dust Collector • 8″, 10″, or 12″ O.D. Screw Auger • Motor Starter • Butterfly Valve • 4″ Fill Pipe with Aluminum Adapter • Transflo Rotary Vane Feeder / Blower Package • Paint Matching • Safety Yellow Paint for Common Work Areas
Split Silos
| Bbl | Ft.³ | Tons | A | B | C |
|---|---|---|---|---|---|
| 500 | 2000 | 94 | 12'-0" | 32'-0" | 11'-0" |
| 700 | 2800 | 122 | 12'-0" | 38'-0" | 11'-0" |
| 850 | 3400 | 158 | 12'-0" | 44'-0" | 11'-0" |
| 1000 | 4000 | 187 | 12'-0" | 50'-0" | 11'-0" |
| 1200 | 4800 | 213 | 12'-0" | 56'-0" | 11'-0" |
Tons = Theoretical cement capacity in tons
Standard Equipment: Outside Ladder with OSHA Compliant Fall Arrest Cable System and Full Railing • (2) 330 Ft.² Pulse Jet Dust Collectors with Cartridge Filters • Solimar Vibratory Disc Aeration • (2) Pressure Relief Valves • High and Low Level Indicators with Alarms • (2) 5″ Fill Pipes with Aluminum Adapters • (2) 1/2″ Internal Air Lines • (2) 1/2″ Electrical Conduits • (4) 20″ Non-Pressurized Inspection Manholes • (2) Emergency Jam Gates • Legs with 3′-6″ Clearance Under Discharge • Sand Blast, Prime, and Paint – White, Gray, Tan, or Yellow
Standard Options: Drive-Through or Non- Drive-Through Style Structural Stand • Work Platform with Grated Floor, Full Railing, Toe and Knee Boards • 10, 12, or 14 Yd.³ Capacity Cement Batcher • Function Controls • Bag-Type Dust Collectors • 8″, 10″, or 12″ O.D. Screw Augers • Motor Starter • Butterfly Valves • 4″ Fill Pipes with Aluminum Adapters • Transflo Rotary Vane Feeder / Blower Package • Paint Matching • Safety Yellow Paint for Common Work Areas
Low Profile Silos

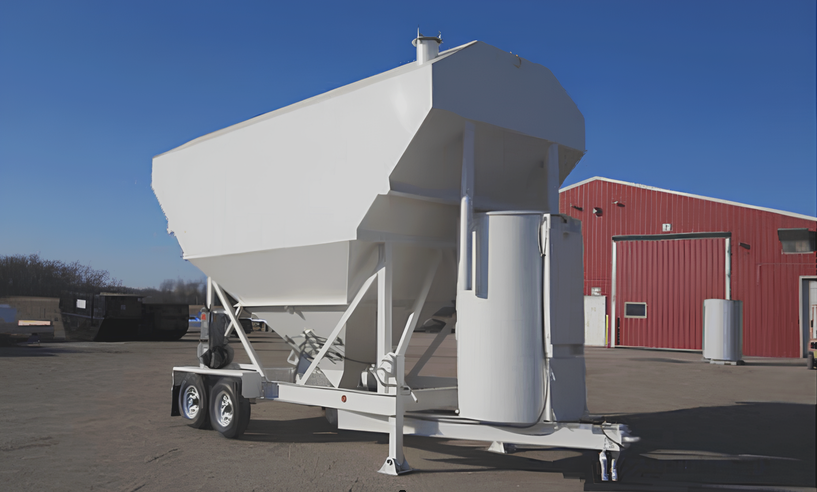

200 Bbl Low Profile Portable
Standard Equipment: 37 Ton Capacity • 8’-6” Wide x 29-5” Overall Length • 8″ x 17′-0″ Auger rated at 7 Ft.³/min. • 5 HP Motor and Gear Box Drive • Heavy Duty Axle with Dual Tires • Electric Brakes and Light Package • 330 Ft.² Pulse Jet Dust Collector with Cartridge-Type Filters • (4) Screw Jacks • 8″ x 5′-0″ Auger Extension • 15′-3″ Auger Discharge Height • 4″ Fill Pipe with Aluminum Adapter • 20″ Non-Pressurized Inspection Manhole (High Level) • 20″ Non-Pressurized Inspection Manhole (Low Level) • Solimar Vibratory Disc Aeration • Sand Blast, Prime, and Paint – White, Gray, Tan, or Yellow
Options: Upgrade to 10″ Auger • 150 Ft.² Dust House • Gas Powered Air Compressor • Bin Level Indicators • Single Phase Motor, Hydraulic Drive Motor with Flow Controls and Quick Connect, 18 HP Gas Motor • Motor Starter Controls • Manual Air Valve Controls

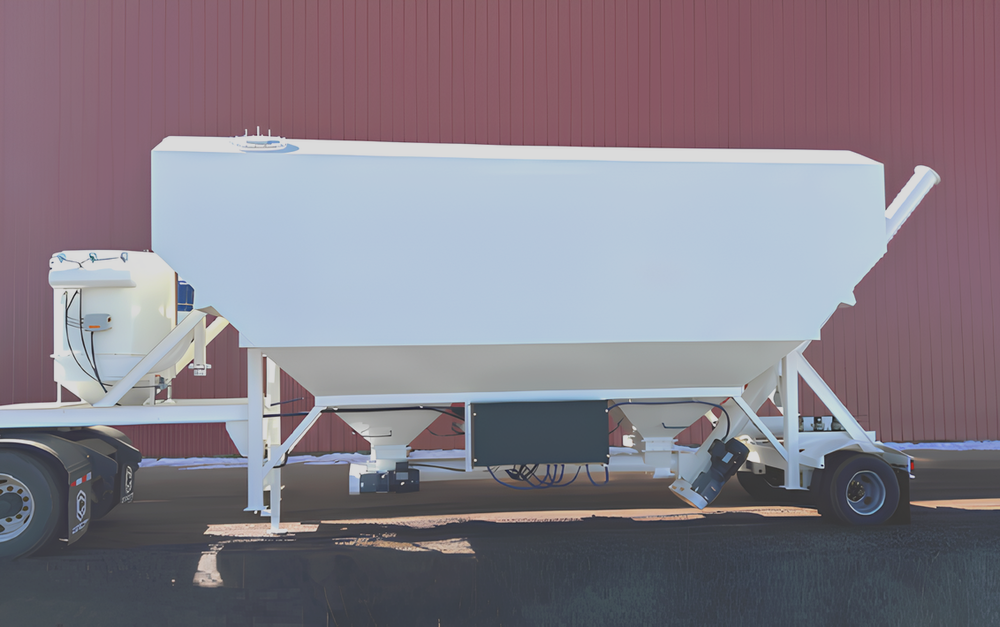

375 Bbl Low Profile Portable
Standard Equipment: 70 Ton Capacity • 38’-0” Overall Length x 8’-6” Wide x 13′-6″ Tall • 8″ Carry Across and 10″ Discharge Screw Augers rated at 17 Ft.³/min. • 10″ x 5′-0″ Discharge Auger Extension • 5 HP and 10 HP Motor and Gear Box Drives • Motor Starter Controls • Heavy Duty Spring Axle with Air Brakes and Dual Tires • 330 Ft.² Pulse Jet Dust Collector with Cartridge-Type Filters • Manual Air Valve Controls • Magnahelic Gauge • Pressure Relief Valve • (4) Leveling Jacks • 15′-6″ Auger Discharge Height with Extension • 4″ Fill Pipe with Aluminum Adapter • (2) 20″ Non-Pressurized Inspection Manholes • Solimar Vibratory Disc Aeration • Manual Slide Gate on each Hopper • Sand Blast, Prime, and Paint – White, Gray, Tan, or Yellow
Options: Upgrade to 10″ and 12″ Screw Augers • 150 Ft.² Dust House • Bin Level Indicators with Lighted Alarms • Single Phase Motors • Hydraulic Drive Motors • Gas / Hydraulic Power Unit • Gas Powered Air Compressor

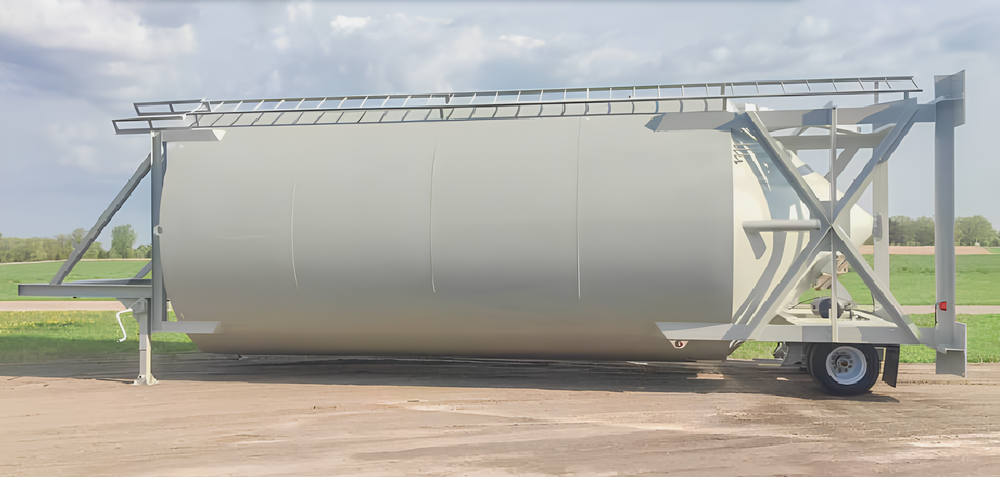

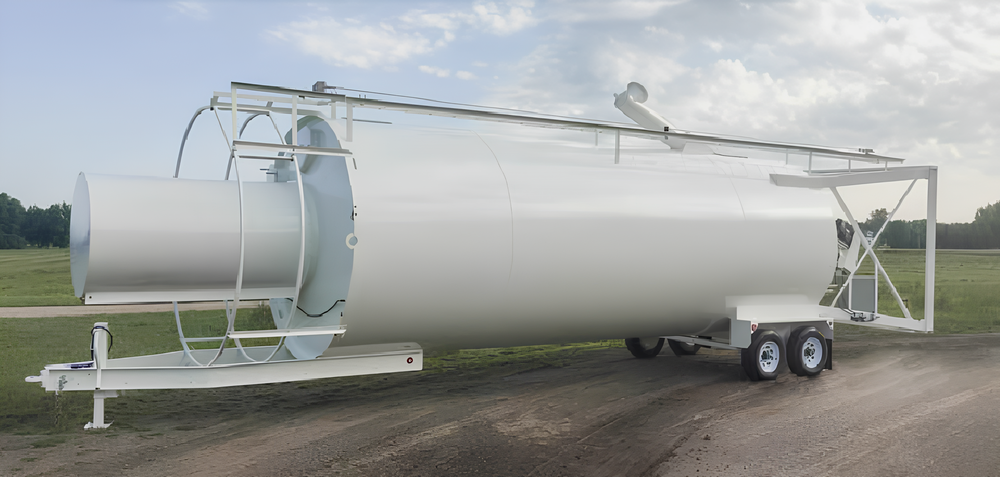

Round Portable Silos
Configurations: Sizing from 270 Bbl to 1200 Bbl • Optional Integrated Positive Feed Drive Auger System with 10″ or 12″ Diameter • Available in Split-Silo Design (12′ Dia. only)
Standard Equipment: Outside Ladder with OSHA Compliant Fall Arrest Cable System and Full Railing • 330 Ft.² Pulse Jet Dust Collector with Cartridge Filters • Solimar Vibratory Disc Aeration • Pressure Relief Valve • High and Low Level Indicators with Alarms • 5″ Fill Pipe with Aluminum Adapter • 1/2″ Internal Air Line • 1/2″ Electrical Conduit • 20″ Non-Pressurized Inspection Manhole(s) • Heavy Duty Dual Axle Trailer and Tires with Electric (or Air) Brakes • Trailer Jack • Sand Blast, Prime, and Paint – White, Gray, Tan, or Yellow
Standard Options: Bag-Type Dust Collector • Single Phase Motor • Motor Starter • Hydraulic Drive Motor with Flow Controls and Quick Connectors • Manual Air Valve Controls • 4″ Fill Pipe
