Concrete Plants
Highly Configurable Single or Dual Lane Setups • Cement Silos from 270 – 1200 Bbl Capacity in Basic or Split Design • Central or Silo-top only Dust Collection • 12 or 14 Yds³ Cement Batchers on Load Cells • Direct-drive Screw Augers • 30 or 36″ Charging Conveyors • Overhead Aggregate Storage Bins from 65 – 215 Tons in Multiple In-line or Window Pane Style Compartments • Accumulative or Decumulative Agg Batching on Load Cells • Radial Stackers • Fixed Deep Truss and Channel Conveyors • Turn Heads and Flop Gates • Premium Castair Air Compressors • Motor Starters • Manual or Automated Batching • Full Compliment of Industry-Standard Options
• Rated at 150 Yds³ / hr. (NET) production per lane when automated

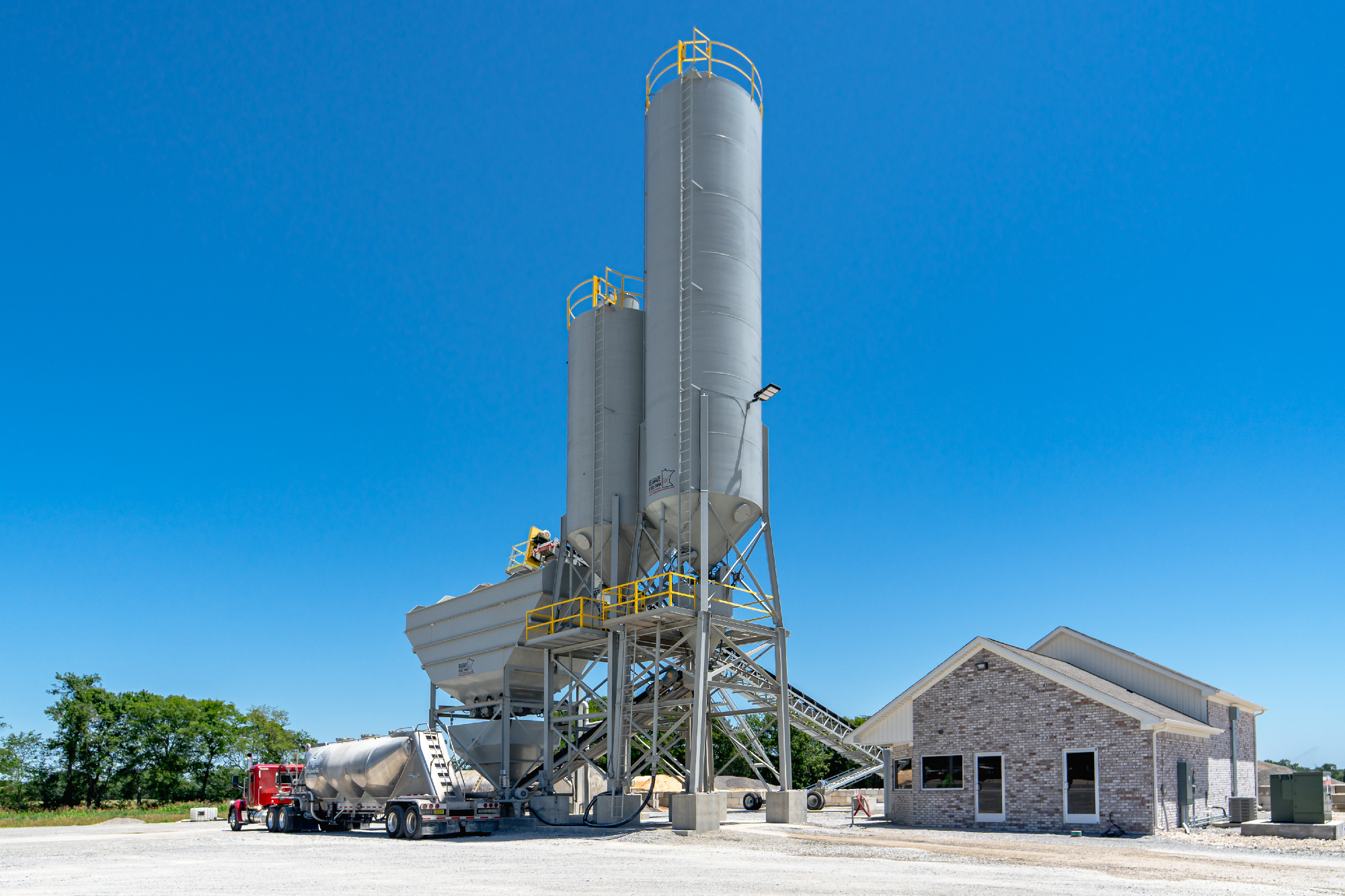

Equipment in Photo: Single Lane Configuration • 1200 Bbl Primary Cement Batching Silo on a 20′ Drive-thru Structural Stand with Work Platform • 12 Yd³ Cement Batcher • 700 Bbl Auxiliary Fly Ash Silo on a 20′ Non Drive-thru Structural Stand • 12″ Screw Auger • 12 Yd³ Aggregate Batcher with 1/4″ Material Throughout + AR 400 Steel Liners • 30″ Truck Charging Conveyor with 20 Hp Motor and Gearbox Drive Package • 180 Ton, 5 Compartment Overhead Aggregate Bin Section with 1/4″ Material Throughout + AR 400 Steel Liners • 30″ x 120′ TCI Radial Stacking Conveyor with Charge Hopper • Safety Yellow Paint on all Hand and Knee Rails • Computer Automated Batching • Unlisted Accessories
