Deep Truss Conveyors

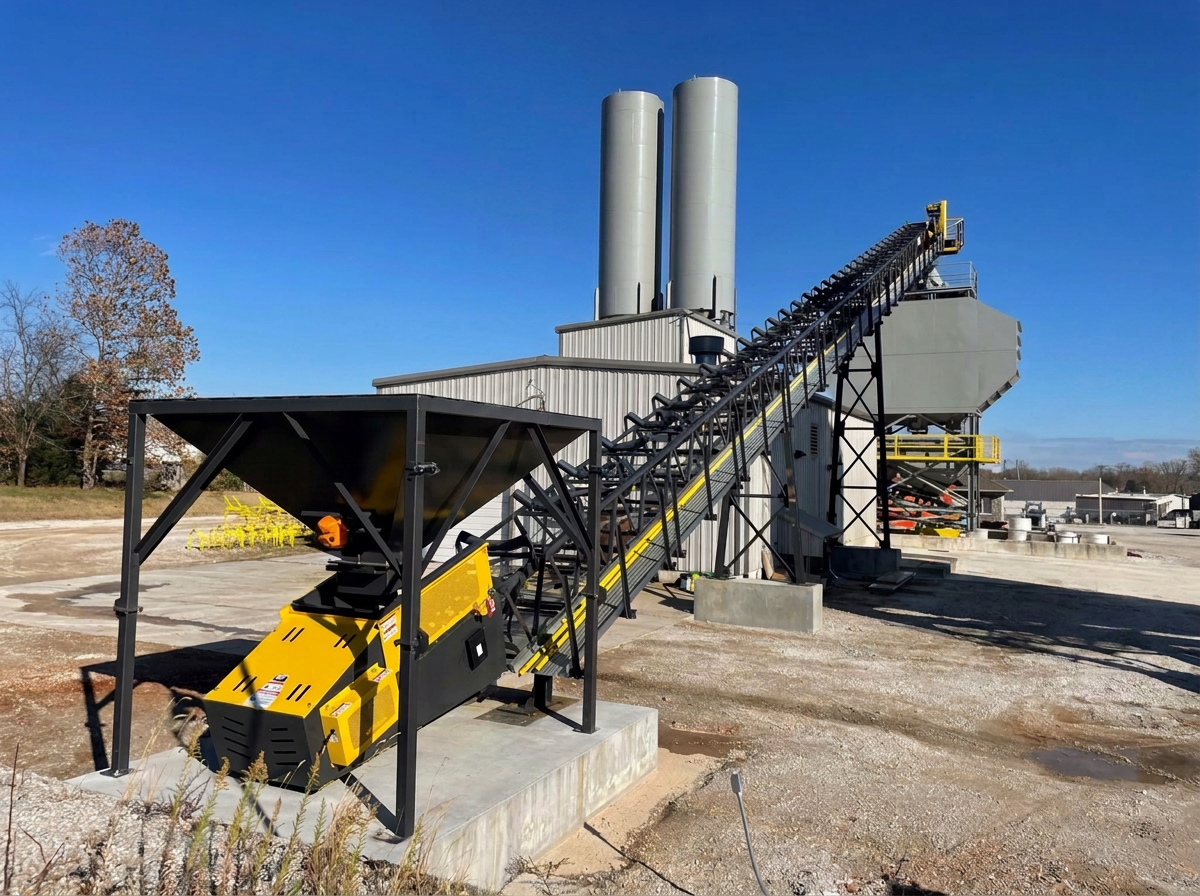

Conveyor: 36″ Deep Truss Main Frame • Manual Raise Undercarriage with Pin-Lock Height Adjustment • Powered Radial Axle with Electric Gearmotor • Head Mounted Main Drive with Nema Premium Efficiency Motor and Dodge TAII Reducer • 2-ply, 220#, 3/16″ x 1/16″, Grade 2 Belting, Skived and Laced with Mechanical Fasteners • Martin Pit Viper Primary Belt Cleaner • Screw-type Take-Ups • Bulk Pro Systems E-Stops • Guarding at Tail Pulley, V-Belt Drive, and All Pinch Points • Rated 450 TPH of 90 lbs./Ft.³ Material at 18° Incline

Conveyor Options: Single-Side Walkway with Gripstrut, Handrail, Knee and Toe Boards • Extended Belt Width • Extended Belt Length for Field Vulcanization • Upgraded 3-Ply, 330#, 3/16″ x 1/16″, Grade 2 Belting • Upgraded CEMA Idlers • Electric Switchgear with Nema 4 Enclosure, Square D Starters, Main Breaker with Handle, Illuminated E-Stop, Push/Pull Buttons, and Hour Meter

Charge Hopper: from 1/4” A36 Plate Steel and Structural Channel • Support Legs with Base Plates • Manual Slide Gate • Bin Vibrator

Hopper Options: 1/4″ AR400 Bolt-In Liners • Multi-function Remote Control with 200′ Range • Bin Vibrator • Grizzly

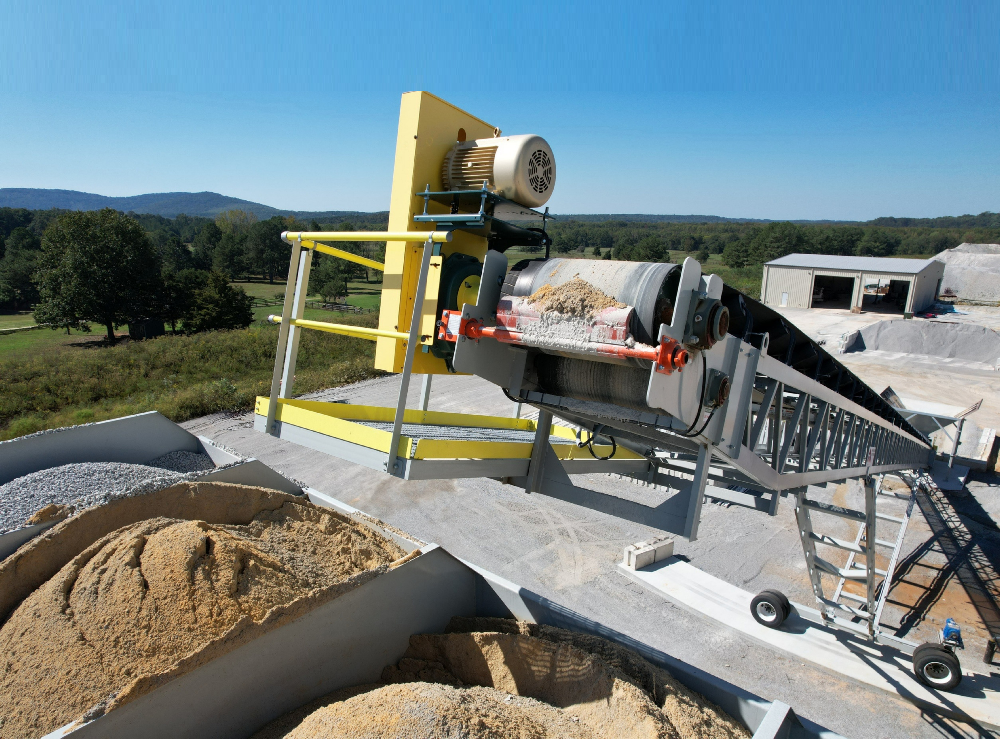

Radial Stacker: 36″ Deep Truss Main Frame • Manual Raise Undercarriage with Pin-Lock Height Adjustment • Powered Radial Axle with Electric Gearmotor • Head Mounted Main Drive with Nema Premium Efficiency Motor and Dodge TAII Reducer • 2-ply, 220#, 3/16″ x 1/16″, Grade 2 Belting, Skived and Laced with Mechanical Fasteners • Martin Pit Viper Primary Belt Cleaner • Screw-type Take-Ups • Bulk Pro Systems E-Stops • Guarding at Tail Pulley, V-Belt Drive, and All Pinch Points • Rated 450 TPH of 90 lbs./Ft.³ Material at 18° of Incline

Radial Stacker Options: Single-Side Walkway with Gripstrut, Handrail, Knee and Toe Boards • Upgraded Belt Width • Extended belt length for Field Vulcanization • Upgraded 3-Ply, 330#, 3/16″ x 1/16″, Grade 2 Belting • Upgraded CEMA Idlers • Electric Switchgear with Nema 4 Enclosure, Square D Starters, Main Breaker with Handle, Illuminated E-stop, Push/Pull Buttons, and Hour Meter

Charge Hopper: from 1/4” A36 Plate Steel and Structural Channel • Support Legs with Base Plates • Manual Slide Gate • Bin Vibrator

Hopper Options: 1/4″ AR400 Bolt-In Liners • Multi-function Remote Control with 200′ range • Bin Vibrator • Grizzly
