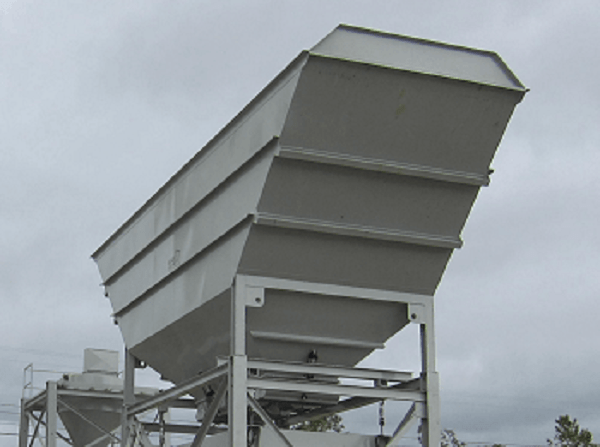

Overhead Aggregate Bins Sizes and Description

Aggregate Bins-4 Comp

Four Compartment Bins

Model Total Height Dimension A
140 Ton 27′-0″ 12′-0″
180 Ton 29′-0″ 14′-0″
215 Ton 31′-0″ 16′-0″
Aggregate Bins-3 Comp

Three Compartment Bins

Model Total Height Dimension A
65 Ton 23′-0″ 8′-0″
90 Ton 25′-0″ 10′-0″
120 Ton 27′-0″ 12′-0″
145 Ton 29′-0″ 14′-0″
170 Ton 31′-0″ 16′-0″
200 Ton 33′-0″ 18′-0″

Overhead Aggregate Bins Standard Equipment

1/4″ Thick Material on all Cones and Sloped Walls • 3/16″ Thick Material on all Straight Walls and Dividers • 3/16″ Thick Material on Removable Heap Plates – 18″ Tall • Aggregate Gates with Air Cylinders – 16″ x 16″ and 16″ x 48″ • 8″ Beam Structural Stand with 14′-0″ Clearance Under Gates

Options: Divider Wall within Individual Compartment(s) • Window Pane Design • AR Steel Liner
