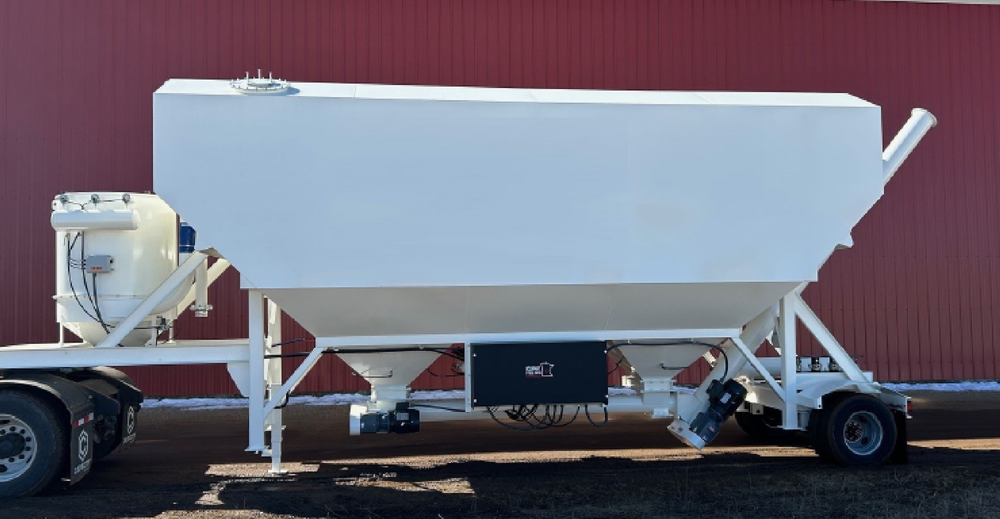

375 Bbl Low Profile Portable Cement Silo
38’-0” Overall Length x 8’-6” Wide x 13′-6″ Tall • 8″ Diameter Carry Across and 10″ Diameter Discharge Screw Augers • 10″ Diameter x 5′-0″ Discharge Auger Extension • 5 HP and 10 HP Motor and Gear Box Drives • Motor Starter Controls • Heavy Duty Spring Axle with Air Brakes and Dual Tires • 330 Ft.² Pulse Jet Dust Collector with Cartridge-Type Filters • Manual Air Valve Controls • Magnahelic Gauge • Pressure Relief Valve • (4) Leveling Jacks • 15′-6″ Auger Discharge Height with Extension • 4″ Fill Pipe with Aluminum Adapter • (2) 20″ Non-Pressurized Inspection Manholes • (12) Solimar Vibratory Discs with Regulator, Check Valve, and Timer Board • Manual Slide Gate on each Hopper • Sand Blast, Prime, and Paint – White, Gray, Tan, or Yellow
Options: Upgrade to 10″ Carry Across and 12″ Discharge Screw Augers • 150 Ft.² Dust House • Bin Level Indicators with Lighted Alarms • Single Phase Motors • Hydraulic Drive Motors • Gas / Hydraulic Power Unit • Gas Powered Air Compressor
Specifications: 15,000 lbs. Empty Weight • 5,500 lbs. Hitch Weight • 1,500 Ft.³ Capacity • 70 Ton Capacity (cement) • 17 Ft.³/min. Output Capacity (10″ Auger)

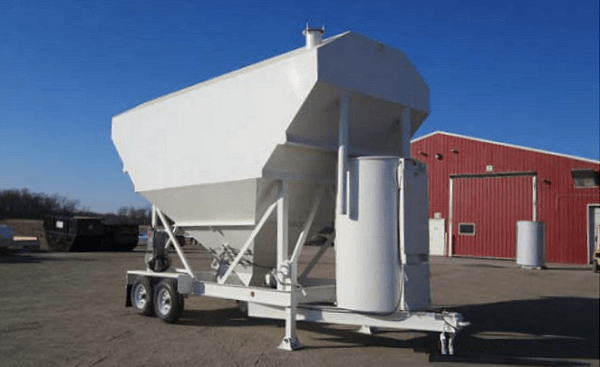

200 Bbl Low Profile Portable Cement Silo
8’-6” Wide x 29-5” Overall Length • 8″ x 17′-0″ Auger • 5 HP Motor and Gear Box Drive • Heavy Duty Axle with Dual Tires • Electric Brakes and Light Package • 330 Ft.² Pulse Jet Dust Collector with Cartridge-Type Filters • (4) Screw Jacks • 8″ x 5′-0″ Auger Extension • 15′-3″ Auger Discharge Height • 4″ Fill Pipe with Aluminum Adapter • 20″ Non-Pressurized Inspection Manhole (HIgh Level) • 20″ Non-Pressurized Inspection Manhole (Low Level) • Solimar Vibratory Disc Aeration • Sand Blast, Prime, and Paint – White, Gray, Tan, or Yellow
Options: Upgrade to 10″ Auger • 150 Ft.² Dust House • Gas Powered Air Compressor • Bin Level Indicators • Single Phase Motor, Hydraulic Drive Motor with Flow Controls and Quick Connect, 18 HP Gas Motor • Motor Starter Controls • Manual Air Valve Controls
Specifications: 8,000 lbs. Empty Weight • 2,100 lbs. Hitch Weight • 800 Ft.³ Capacity • 37 Ton Capacity (cement) • 7 Ft.³/min.
