Controls To Manage and Measure Plant Equipment
9 Stack Mac Valve Panel for Cement Controls
• Eight Single Solenoid 9300 Series Valves
• One Double Solenoid 9300 Inching-Type Valve
• Manifold for Common Air and Electric Hookups
• Wired to Terminal Strip
• Filter / Regulator
• One Flow Control Valve for Scale Discharge Gate
• Completely Plumbed with Quick Connect Fittings
• Mounted and Enclosed in a NEMA 3 Enclosure
• 80’-0” of 37 Pin Cable
• Hose and Fittings to Plumb Plant
6 Stack Mac Valve Panel for Aggregate Controls
• Five Single Solenoid 9300 Series Valves
• One Double Solenoid 9300 Inching-Type Valve
• Manifold for Common Air and Electric Hookups
• Wired to Terminal Strip
• Filter / Regulator / Oiler
• One Flow Control Valve for Scale Discharge Gate
• Completely Plumbed with Quick Connect Fittings
• Mounted and Enclosed in a NEMA 3 Enclosure
• 50’-0” of 37 Pin Cable
• Hose and Fittings to Plumb Plant

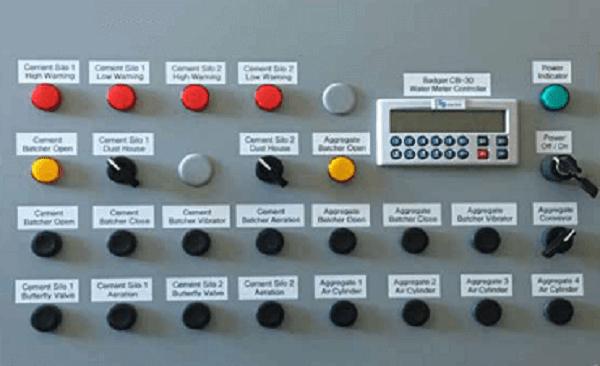

Push Button Control Panel
• Two Cement Feed Momentary Buttons
• Two Cement Aeration Maintained Buttons
• One Cement Scale Open Button
• One Cement Scale Closed Button
• One Cement Scale Open Indicator
• One Cement Scale Vibrator Maintained Button
• One Cement Scale Aeration Maintained Button
• Four Bin Indicator Lights
• Two Dust Collector Vibrator Switches
• Four Aggregate Feed Momentary Buttons
• One Aggregate Scale Open Button
• One Aggregate Scale Closed Button
• One Aggregate Scale Open Indicator
• One Aggregate Scale Vibrator Maintained Button
• One Transfer Belt On / Off Switch
• One Power On / Off Switch
• One Power Indicator Light
• One Main Circuit Breaker
Motor Starter Packages
• NEMA 3 Enclosure
• Main Disconnect
• Control Transformer
• Fuses
• Start / Stop Buttons (local or remote mounting)
• 208 / 230 / 460 / 575 Volt
• Single or Three Phase
Badger Water Meters
• 2” Turbo Butterfly Valve With PFT-3E Unscaled Transmitter
• CB-20 Panel Mount Batch Controller
• NEMA 4X Enclosure
• Optional Upgrade to 3″ Valve
• Optional Upgrade to PFT-4E Scaled Transmitter
Variable Frequency Drive Packages
• NEMA 3 Enclosure
• Main Disconnect
• Constant Torque Drive
• Fuses
• Local / Remote Display
• Field Adjustable Speed Control (analog or potentiometer)
• Programmable For 2, 4, or 8 Preset Speeds
• 208 / 230 / 460 Volt
• Single or Three Phase
