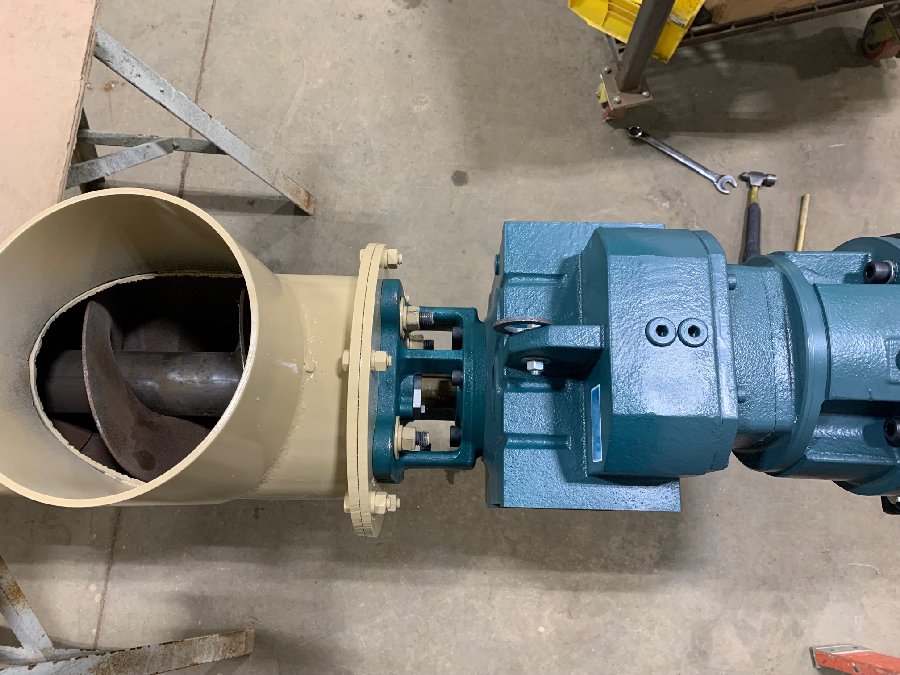

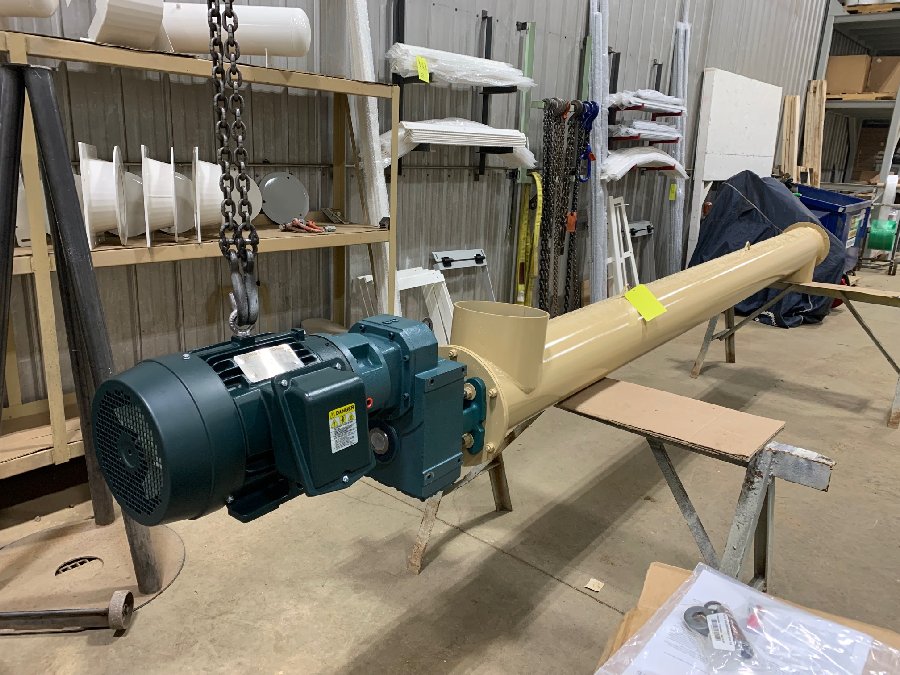

8″, 10″, or 12″ outside diameter • Lengths up to 40’+ (with hanger bearing) • Available split construction for easy shipping and field installation • Direct-drive, in-line, beltless motor and gearbox drive design • Selectable 3, 6, 9, or 12 o’clock drive-to-auger mounting • 175 RPM, full-pitch flighting with initial 5′ at 2/3 pitch (available double flighting when material grinding or pulverizing is required) • Toshiba premium-efficiency, dual-voltage motors up to 30+ HP • Falk gearboxes • ANSI inlet and discharge flanges (shipped loose when needed) • Standard boot with clamp and batcher ring with clamp
Auger Production Rates (@ 10° of incline):
8″ dia.: 13 ft.³/min
10″ dia.: 27 ft.³/min
12″ dia.: 64 ft.³/min
