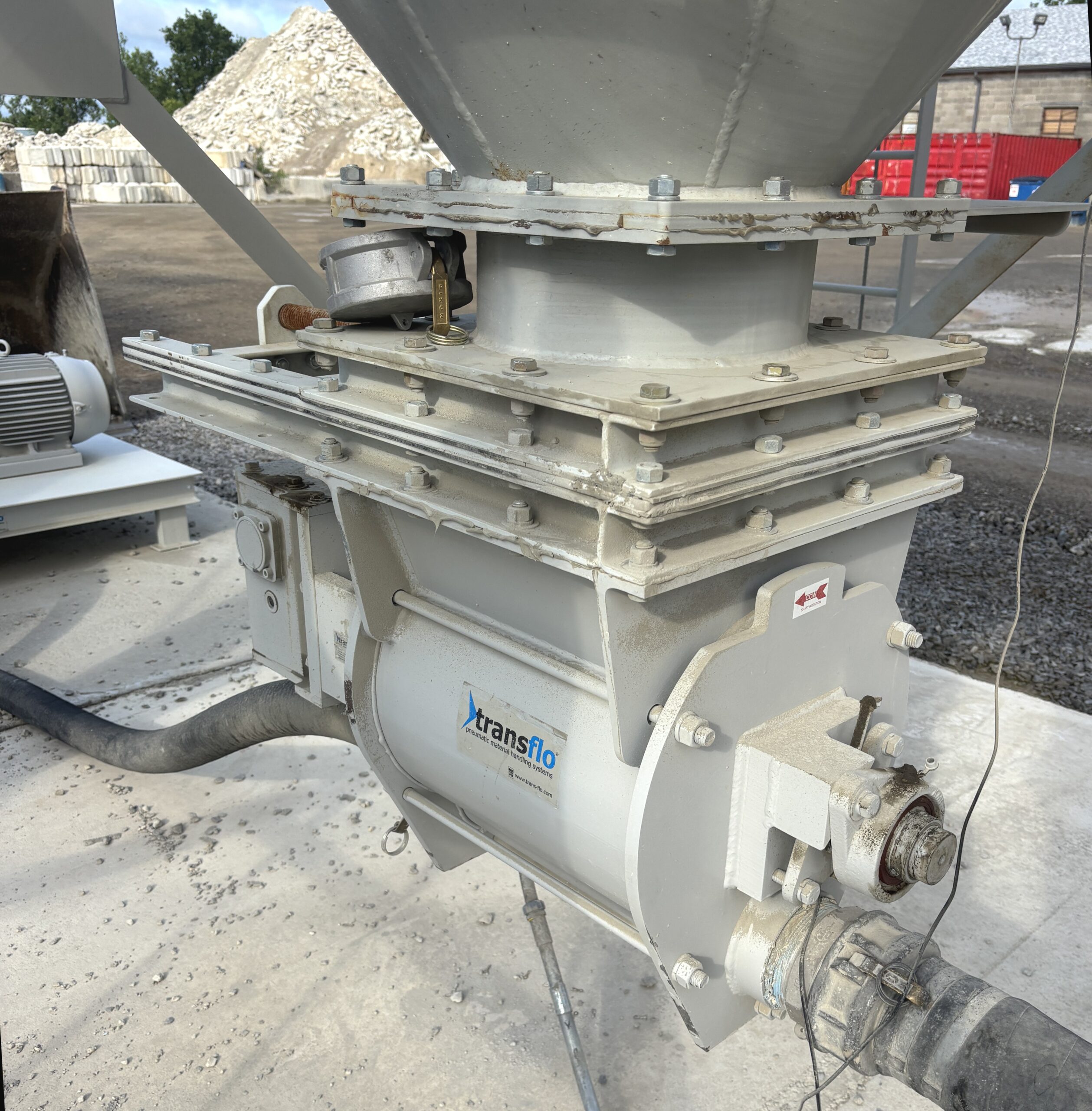

Transflo® Model 1000 Rotary Vane Feeder
Fourteen-inch class feeder with tungsten carbide interior end plates and housing .005-.007 • 1-1/2 HP dual-voltage TEFC electric drive motor with speed reducer • cast vane with adjustable and replaceable urethane edge/end wipers • Maxi-Flo manual slide gate • bolt-to receiver pre-welded to silo discharge • clean-out box • 4″ NPT inlet and outlet • throughput rate (with 40 HP blower) @ 44 TPH theoretical, 35 TPH actual
Options: Upgrade to Model 2000 with 60 HP blower (increases thoughput by ~25%)

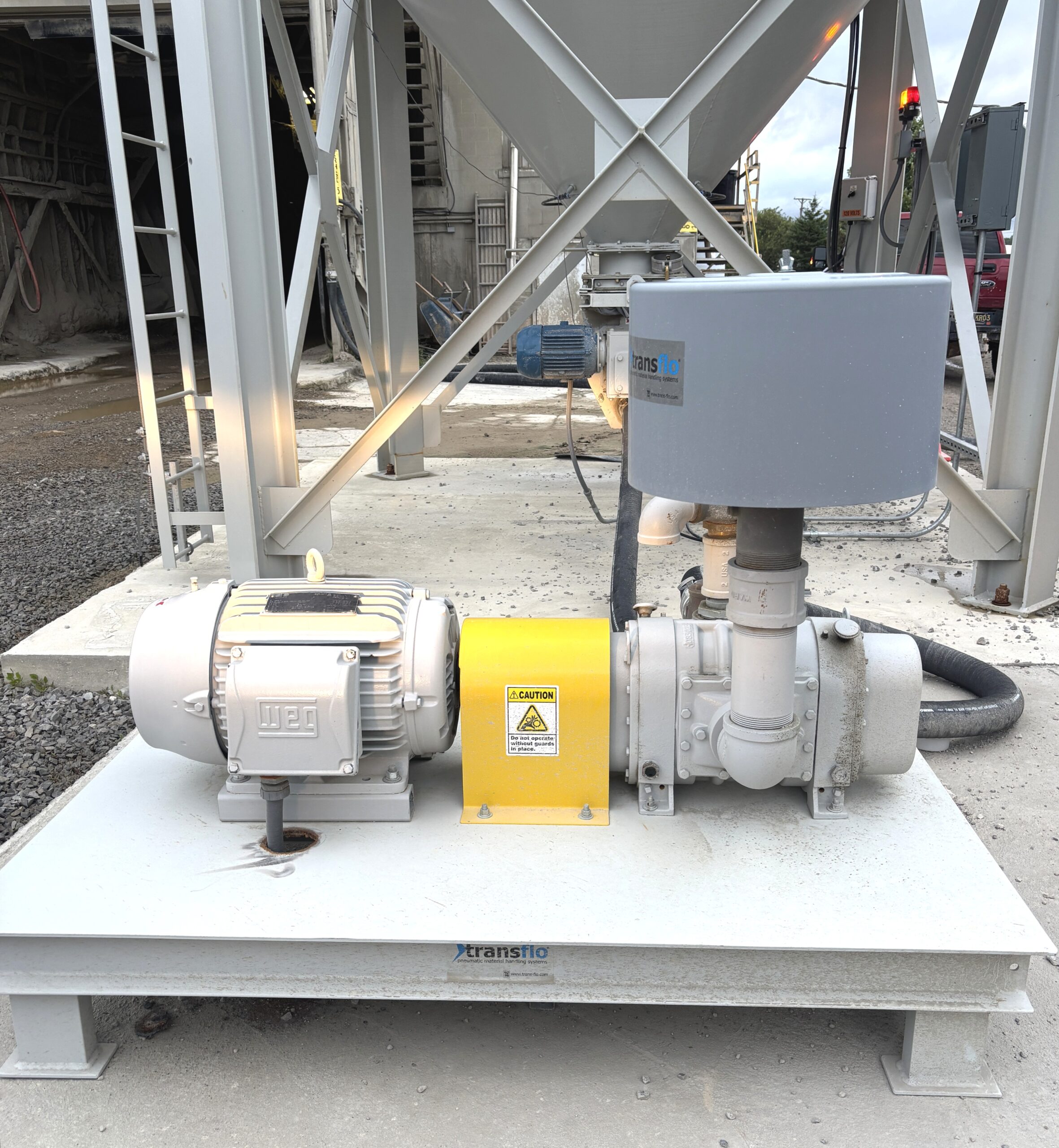

Blower Package
Dual-voltage TEFC drive motor with MD PD Plus 4009-17T2 positive displacement blower, 350 ICFM, 15 PSI • air inlet filter assembly • pressure relief valve • check valve • pressure gauge • restriction gauge • safety guard • skid mounted
Options: Silencer package • motor starter packages • complete system user control panel(s) – both manual or fully automated
